Plastic Containers

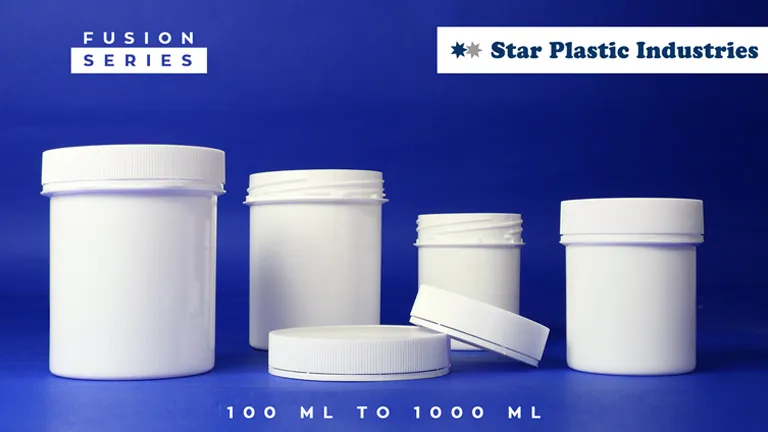

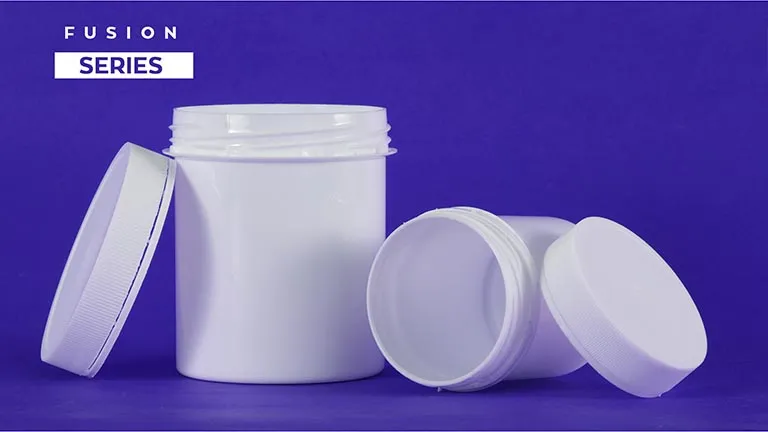

Plastic Containers Fusion
Plastic Containers Fusion
Plastic Containers Fusion
Plastic Containers Fusion
Plastic Containers Fusion

Excellent Sealing, Supreme Beauty, Strength & Durability, Unbeatable
in every aspect of Packaging

SPIPL’s FUSION brand plastic Containers comprises of various features & functionalities in di erent sizes. FUSION CONTAINER has been superiorly and e ciently designed, at par with international design standard. These containers are made using superior quality polymers for maximum shelf life, with that the containers have a robust structure being Dentproof & Unbreakable.

Its capability comprises of Thread type closure with Temper Evident Ring making it spill proof.

Request a Quote Download Brochure

Description

  • Injection moulded for better dimensional stability
  • Thread Type Closer
  • Temper evident ring making it spill sproof
  • Provision of induction sealing
  • Superior and efficient design, at par with international design standard
  • Made using superior quality polymers for maximum shelf life
  • Dentproof and unbreakable makes it robust

Applications

Pharmaceutical
Pharmaceutical
Cosmetic
Cosmetic
Laboratory
Laboratories
Food Products
Food

Specifications

100 ML

Fusion Mark
100 ML
Product Type Icon
Product Type

Container: Injection Moulded
Cap : Injection Moulded

MOC Container
MOC Container

Polypropylene

MOC Cap
MOC Cap

HDPE

Outer Diameter of Container
Outer Diameter of Container

50.40 mm ± 0.5 mm

Container HT. Without Cap
Container HT. Without Cap

62.60 mm ± 0.5 mm

Outer Diameter of Cap
Outer Diameter of Cap

55.00 mm ± 0.5 mm

Container Wall Thickness
Container Wall Thickness

1.00 mm ± 0.25 mm

Inner Diameter of Container
NECK INNER DIAMETER OF CONTAINER

48.60 mm ± 0.50 mm

Container HT. With Cap
Container HT. With Cap

64.50 mm ± 0.5 mm

Inner Diameter of Cap
Inner Diameter of Cap

51.60 mm ± 0.5 mm

Container Capacity
Container Capacity

100 ML

Container Weight
Container Weight

12.50 gm ± 0.5 gm

Cap Weight
Cap Weight

5.90 gm ± 0.5 gm

Cap HT.
Cap HT.

15.20 mm ± 0.5 mm

Container Brim Level
Container Brim Level

117 ML ± 4 ML

250 ML

Fusion Mark 250
250 ML
Product Type Icon
Product Type

Container: Blow Moulded
Cap : Injection Moulded

MOC Container
MOC Container

HDPE

MOC Cap
MOC Cap

PP

Outer Diameter of Container
Outer Diameter of Container

65.90 mm ± 0.5 mm

Container HT. Without Cap
Container HT. Without Cap

82.90 mm ± 0.5 mm

Outer Diameter of Cap
Outer Diameter of Cap

72.40 mm ± 0.5 mm

Container Wall Thickness
Container Wall Thickness

1.00 mm ± 0.25 mm

Inner Diameter of Container
INNER DIAMETER OF CONTAINER

63.90 mm ± 0.50 mm

Container HT. With Cap
Container HT. With Cap

84.70 mm ± 0.5 mm

Inner Diameter of Cap
Inner Diameter of Cap

67.70 mm ± 0.5 mm

Container Capacity
Container Capacity

250 ML

Container Weight
Container Weight

24.80 gm ± 0.5 gm

Cap Weight
Cap Weight

9.20 gm ± 0.5 gm

Cap HT.
Cap HT.

15.00 mm ± 0.5 mm

Container Brim Level
Container Brim Level

264 ML ± 4 ML

250 ML MARK II

250 ML MARK II
250 ML MARK II
Product Type Icon
Product Type

Container: Blow Moulded
Cap : Injection Moulded

MOC Container
MOC Container

HDPE

MOC Cap
MOC Cap

PP

Outer Diameter of Container
Outer Diameter of Container

73.00 mm ± 0.5 mm

Container HT. Without Cap
Container HT. Without Cap

82.20 mm ± 0.5 mm

Outer Diameter of Cap
Outer Diameter of Cap

73.00 mm ± 0.5 mm

Container Wall Thickness
Container Wall Thickness

1.20 mm ± 0.25 mm

Inner Diameter of Container
NECK INNER DIAMETER OF CONTAINER

62.20 mm ± 0.50 mm

Container HT. With Cap
Container HT. With Cap

82.8 mm ± 0.5 mm

Inner Diameter of Cap
Inner Diameter of Cap

66.30 mm ± 0.5 mm

Container Capacity
Container Capacity

250 ML

Container Weight
Container Weight

25.80 gm ± 0.5 gm

Cap Weight
Cap Weight

10.80 gm ± 0.5 gm

Cap HT.
Cap HT.

23.00 mm ± 0.5 mm

Container Brim Level
Container Brim Level

280 ML ± 4 ML

Your Perfect Packaging Solution Is Just a Click Away!

Star Plast Industries Pvt Ltd delivers hygienic, durable, high-precision plastic containers for pharma, food, chemical, and industrial needs, including small-volume, bulk, and custom options.

  • Premium Quality, Industry-Standard Containers
  • Manufactured With Food-Grade & Pharma-Safe Materials
  • Durable, Leak-Proof & Contamination-Free Packaging
  • Custom Sizes Available to Match Your Exact Needs

Fill Out the Form Below to Request a Quote or Discuss Your Requirements

=
